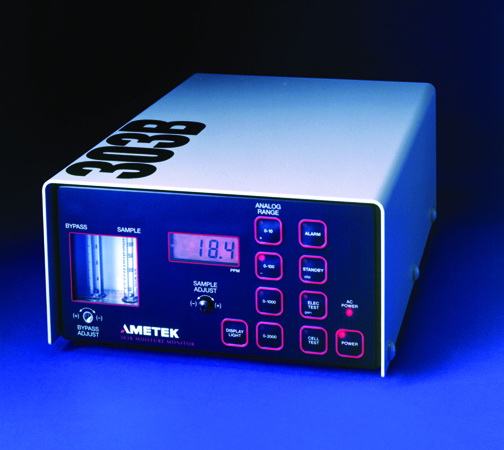

303B Moisture Analyzer

Features

The 303B offers highly accurate portable measurement of trace moisture in gas streams for division 2 areas. Using an electrolytic (P2O5) sensor, the 303B can be used to monitor nearly all gases. It is compact, lightweight, and suitable for both portable use and permanent installation in Class I Div. 2 areas. With the optional carrying bag and lightweight design, the 303B is truly portable.

APPLICATIONS : The 303B is designed to measure moisture content in gases such as air, nitrogen, argon, natural gas, and others with comparable characteristics. Typical applications are:

Monitoring natural gas pipelines and gas treatment processes
Monitoring air humidity in dry boxes
Continuous monitoring of atmospheres in simulated space chambers
Sensing elements in humidity control systems
Monitoring inert protective atmospheres in brazing or sintering furnaces
Monitoring moisture in many fluorocarbon gases
Constant measurement of batch and continuous driers to assure quality control without the expense of overdrying
Monitoring anhydrous batch chemical processes at startup
Quality control of transistor and diode backfill gas
Instrument air systems
Cryogenic processes
Radar waveguides

Industrial

Oil & Gas
Chemical & Petrochemical

Request for quotation

Categories: 303B Moisture Analyzer, Ametek Process Instruments, Chemical & Petrochemical, Portable, Process Moisture

Description

Description

Specifications

	Dynamic Range+F43:I63	0 to 1000 ppmv at 100 mL/min sample flow through cell at 25ºC and 101.4 kPa (0-2000 ppmv range possible with reduced sample flow
	Sensitivity	0.1 ppmv
	Accuracy	+0.5 ppm or +5.0% of the display reading, whichever is greater
	Response Time	63% response to a stepwise change in either direction between 50 ppm and 1000 ppm will occur in 30 seconds or less
	Utility Requirements	100 to 130 VAC or 200 to 260 VAC and optional 12 to 14 VDC operation, 20W maximum
	Analog Output	4-to-20 mA DC proportional to range selected, compatible with 625-ohm maximum load
	Alarms	Rated for 1 A, 24 VDC, normally open and normally closed contacts; user-settable to fail-safe or low-power operation
	Sample Temperatures	up to 52ºC (125ºF)
	Ambient Temperature	0º to 52ºC (32º to 125ºF)
	Temperature Stability	0.5% per ºC of selected range
	Sample Pressure	69 to 690 kPa (10 to 100 psi) gauge
MECHANICAL SPECIFICATIONS
	Electrolyte Cell	The electrolyte sensor is in a self contained assembly for quick and easy replacement
	Front Panel Controls	Analog ranges 0 to 10, 100, 1000, and 2000 ppm; 0 to 0.5, 5, 50, 100 lb/mmscf
		-Display light
		-Alarm
		-Standby power
		-Electrical test
		-Cell test
		-Power
		-Sample and by-pass flow adjust
	External Connectors	Gas IN and OUT fittings for 1/8 inch OD tubing. Internal connections for output and alarms; relay jumper changes operation to failsafe mode
	Materials of Construction	Sample comes in contact with P2O5 stainless steel, TEFLON® fluorocarbon resin, gless, platinum, and Viton
	Weight	6.4kg (14 lb)
	Cabinet Dimensions (LxWxH)	34.3 x 23.5 x 12.7 cm (13.5 x 9.25 x 5.0 in)
	Certificate	UL/CSA General Safety Requirements
		UL/CSA Class I, Division 2, Groups A, B, C, D T4A
		Complies with all relevant European directives
