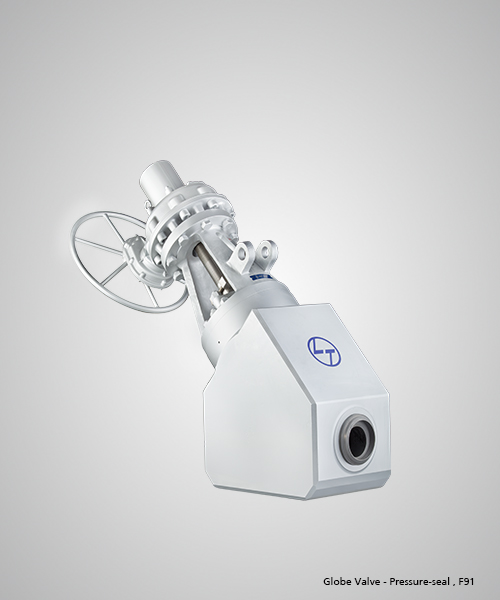

Globe Valves – Pressure Seal

Globe Valves – Pressure Seal

Special Features & Benefits

Pressure-seal Globe Valve design conforms to ASME B 16.34.
CE Marking – Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H
Atex – Meets requirements of Atex Directive 94/9/EC (ATEX), category 2 non-electrical equipment
Safety Integrity Level for Automated Valves – SIL 3 certification available
Pressure-seal Globe Valves (up to Class 2500) used in Oil & Gas industry tested to ISO 15848-1 Class BH
Pressure-seal Globe Valves successfully tested to Shell Design Validation Test 77/300 and witnessed by Shell Inspectors

Valves in intermediate classes reduce total cost of ownership
Pressure-Seal mechanism utilizes line pressure to enhance seal; ensures sealing integrity at higher operating pressures.
In-situ hardfaced seat design for all sizes
Higher hardfacing thickness (3 mm) to ensure consistent hot hardness
Body-guided Disc offered in Pressure-seal Globe Valves (all sizes/classes) provides disc stability and avoids vibration of the disc-disc nut assembly
Disc guides hardfaced for longer life
Customised deposition process in F91/ C12A valves to avoid delamination of hardfaced surfaces
Live loading of bonnet bolts for F91/ C12A valves
Special high purity graphite packing (seven rings) provided for pressure rating > Class 2500 in Power applications

Description

Features

Globe Valves – Pressure Seal

Size 3″ to 18″ (80 mm to 450 mm)
ASME Class Class 900 to 4100
Design Standard ASME B 16.34
